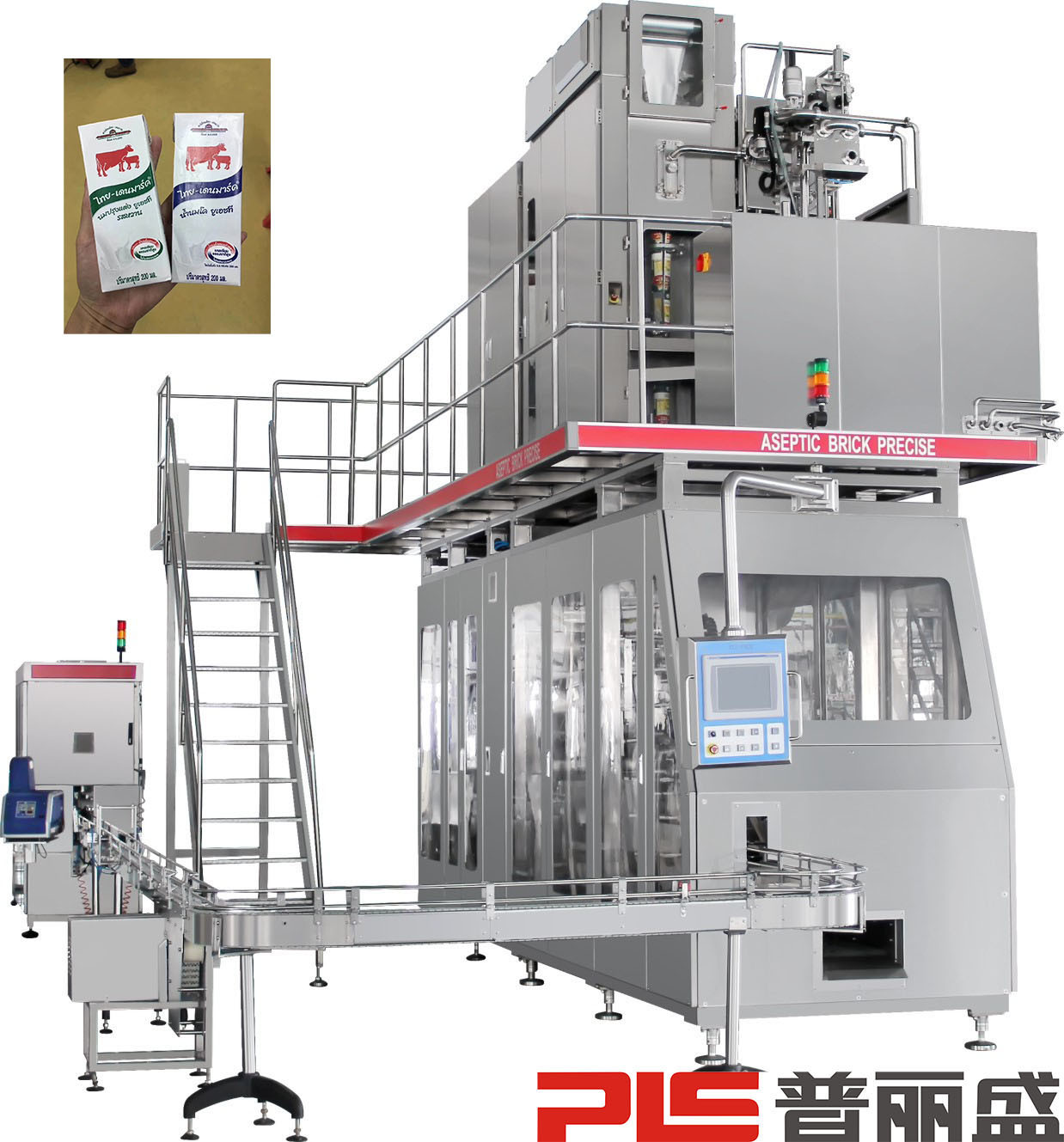

    16000 PPH 200ml Slim Aseptic Carton Filling Machine with Straw Applicator for Milk

    Ask Lasest Price
    Brand Name : PLS
    Model Number : PBA-16000
    Certification : ISO, CE
    Price : NEGOTIABLE
    Payment Terms : L/C, T/T
    Supply Ability : 20 SETS/MONTH
    Delivery Time : 60-90 DAYS
    • Product Details
    • Company Profile

    16000 PPH 200ml Slim Aseptic Carton Filling Machine with Straw Applicator for Milk

    200ml High Speed Brick Aseptic Filling Machine for milk


    Description:


    The Aseptic Packing Automatic Cartoning Machine is applicable for aseptic packing of liquid UHT milk and non-soda drink, fruit juice, coffee, plant protein drink, tea beverage, fruit wine etc. gravity flow type liquid food that have been carried out after UHT sterilization.


    16000 PPH 200ml Slim Aseptic Carton Filling Machine with Straw Applicator for Milk


    Parameter:


    Name:Aseptic filling machine
    Model:PBA-16000 (200S)
    Capacity:16000 packs/hour
    Filling volume:200S: 250ml ±10%
    Outline dimension:5560mm (L)*3580mm(W)*5000mm(H)
    Installation space:8500mm*4500mm*5700mm
    Weight:8500kg
    Power supply:380V±10% (3φ) 50Hz
    Air consumption:450±100L/min (0.6~0.7Mpa)
    Softened water consumption:15L/min (0.3~0.45Mpa, below 20℃)
    Steam consumption:2.5kg/h (130±5℃, 0.17±0.03Mpa)
    H2O2 consumption:0.6~1.0L/H (Density: 30~50%), food grade
    Lubrication oil consumption:0.015L/H
    Operating system:Human-company interface
    Temperature of filling material:15-25℃
    Filling pressure:50-150±10KPa (mechanical pontoon), 50~350±100Kpa (flow rate adjusting valve)
    Shape of container:Brick Slim
    Type of packagingRoll paper


    Key Points:

    • Automatic Form Feed –sterilize –filling –shaping – sealing
    • User friendly interface
    • Noiseless operation


    Applications:


    Suitable for filling liquid herb tea, dairy product, juice, milk, milk beverage, cream, yogurt, mineral water, soy milk, tea beverage, seasoning, wine, cleaning solution, chemical product, granular, dry powder and so on.


    Main Components:


    NameSupplierCountry
    PLCMITSUBISHIJapan
    Touched screenHITECHTaiwan
    Electrical switchSCHNEIDERFrance
    Controlling valveGEMU, BURKERTGermany
    SensorSICKGermany
    Main motorABBSweden
    Motorized pulleyINTERROLLDenmark
    Pneumatic controllingMAC, CAMOZZIUSA/Italy
    Temperature controllerOMRONJapan
