    188ml Aseptic Pouch Filling Machine for soymilk, 30kw 4500-9000 PPH Capacity

    Ask Lasest Price
    Brand Name : PLS
    Model Number : WB64B-9000
    Certification : ISO9001, CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets/month
    Delivery Time : 60-90 days
    • Product Details
    • Company Profile

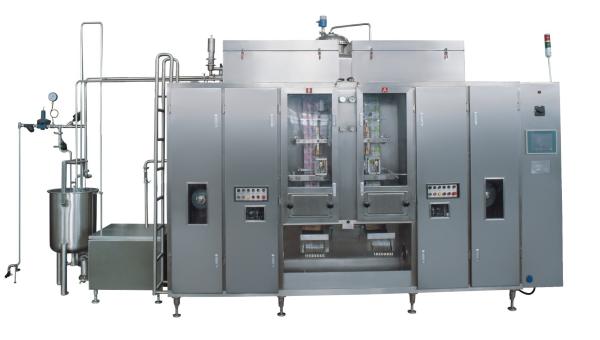

    188ml Aseptic Pouch Filling Machine for soymilk, 30kw 4500-9000 PPH Capacity

    Aseptic pouch filling machine, aseptic plastic pouch filling machine

    This packing machine has been widely applied in various fields, including liquid dairy products, plant protein beverages such as UHT milk, flavored milk, fruit juice, peanut milk, soybean milk, vinegar, water and yellow wine. It also has the extending functions like automatic cursor orientation and step-less filling speed control. It can pack 2 different volumes at same time (eg, 200ml * 500ml simultaneously).


    188ml Aseptic Pouch Filling Machine for soymilk, 30kw 4500-9000 PPH Capacity


    The machine adopts complete pneumatic structure and PCC intelligent computer controllable program control with stable running, simple operation and low maintenance cost. The products are continuously upgraded. The high speed machine of 9000 model has been firstly produced in the country.

    filling size: 100-500ml
    filling capacity: 4500-9000 pcs/H
    1. Specification
    TypeWB64B—9000
    Produce capacity

    200ml ----- 7500 bags/h

    Filling adjust wayNon-step
    Filling heads2 (separate filling volume control)
    Packing typeThree sides seal
    Filling temperature20~25℃
    Film wastage/seal integrity

    <3‰

    (Count from actual production, except warm-up ones)

    Motor power (KW)30
    Electricity3+N+E 380/220V 50Hz
    Voltage tolerance≦±5%, use regulator if necessary
    Dimension (mm)4600*1500*3600
    Installation dimension (mm)7000*6000*4900
    Film width (mm)320 ± 1 or 260 ± 1
    Max. film weight20kg
    Compressed air≥0.6Mpa, 3m3/h
    Steam>4bars, 5kg/h
    H2O2 standard35% food grade
    H2O2 consumption

    1L each time for filing chamber sterilization;

    1L/4H for production

    Water consumption500L/each CIP process

    1. Main Components:
    No.NameImportedCountry
    1Main Control SystemB&R PCCAustria
    2Materiel & CIP ValveAPVU.K.
    3Level Control ValveGEMUGermany
    4Level SensorE+HGermany
    5CylinderFESTOGermany
    6Angle Seat ValveGEMUGermany
    7High-Speed Electromagnetism ValveMACU.S.
    8Steam Reducing Valve

    PICUT

    (Watson McDaniel)

    U.S.
    9MotorABBSweden
    10H2O2 PumpNikuniJapan
    11Step DriverSHAPHONU.S.
    12Spraying systemsSpraying SystemsU.S.
    13Human interfaceHitachiTaiwan
    14Electric SwitchSchneiderFrance
    15SwitchTURCKGermany
    16Laser SensorBANNERU.S.
