Pneumatic Structure Plastic Pouch Packing Machine , Juice Pouch Aseptic Filler Machine

Aseptic pouch filling machine, aseptic plastic pouch filling machine

The machine adopts complete pneumatic structure and PCC intelligent computer controllable program control with stable running, simple operation and low maintenance cost. The products are continuously upgraded. The high speed machine of 9000 model has been firstly produced in the country.

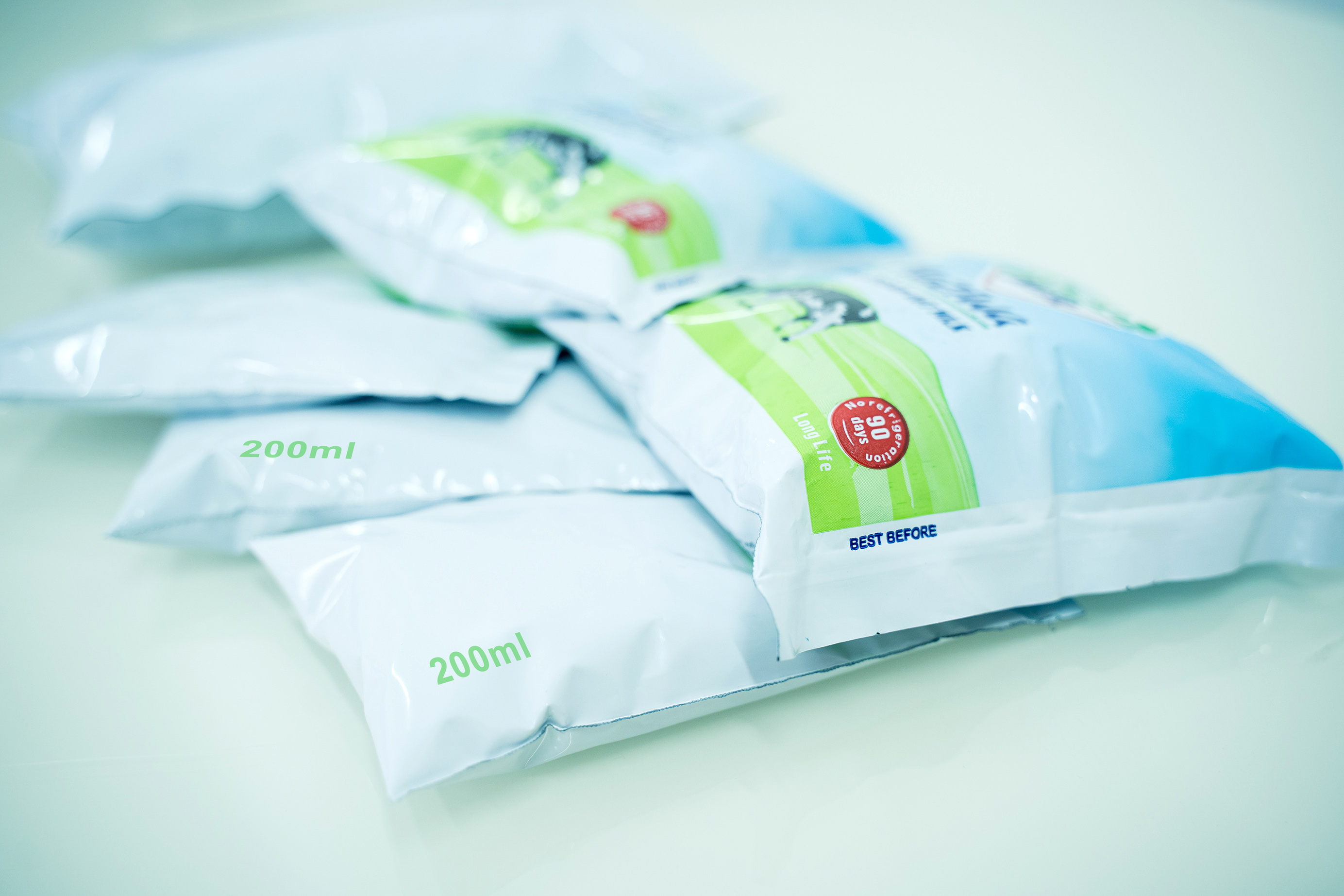

Filling size: 200-1000ml

200ml: 8000 packs/H

500ml: 6000 packs/H

1000ml: 3000 packs/H

Pneumatic Structure Plastic Pouch Packing Machine , Juice Pouch Aseptic Filler Machine

Introduction of PLS Aseptic Pouch Filling Machine

The packaging machine has been widely applied in various fields, including liquid dairy products, plant protein beverages such as UHT milk, flavored milk, fruit juice, peanut milk, soybean milk, vinegar, water and yellow wine. It also has the extending functions like automatic cursor orientation and step-less filling speed control. It can pack 2 different volumes at same time (eg, 200ml * 500ml simultaneously).

Specification

Type	WB64B—9000
Produce capacity	100ml ----- 9000 bags/h 500ml ----- 4500 bags/h
Filling adjust way	Non-step
Filling heads	2 (separate filling volume control)
Packing type	Three sides seal
Filling temperature	20~25℃
Film wastage/seal integrity	＜3‰ (Count from actual production, except warm-up ones)
Motor power (KW)	30
Electricity	3+N+E 380/220V 50Hz
Voltage tolerance	≦±5%, use regulator if necessary
Dimension (mm)	460015003600
Installation dimension (mm)	700060004900
Film width (mm)	320 ± 1 or 260 ± 1
Max. film weight	20kg
Compressed air	≥0.6Mpa, 3m³/h
Steam	>4bars, 5kg/h
H₂O₂ standard	35% food grade
H₂O₂ consumption	1L each time for filing chamber sterilization; 1L/4H for production
Water consumption	500L/each CIP process

Main Components:

No.	Name	Imported	Country
1	Main Control System	B&R PCC	Austria
2	Materiel & CIP Valve	APV	U.K.
3	Level Control Valve	GEMU	Germany
4	Level Sensor	E+H	Germany
5	Cylinder	FESTO	Germany
6	Angle Seat Valve	GEMU	Germany
7	High-Speed Electromagnetism Valve	MAC	U.S.
8	Steam Reducing Valve	PICUT (Watson McDaniel)	U.S.
9	Motor	ABB	Sweden
10	H₂O₂ Pump	Nikuni	Japan
11	Step Driver	SHAPHON	U.S.
12	Spraying systems	Spraying Systems	U.S.
13	Human interface	Hitachi	Taiwan
14	Electric Switch	Schneider	France
15	Switch	TURCK	Germany
16	Laser Sensor	BANNER	U.S.
