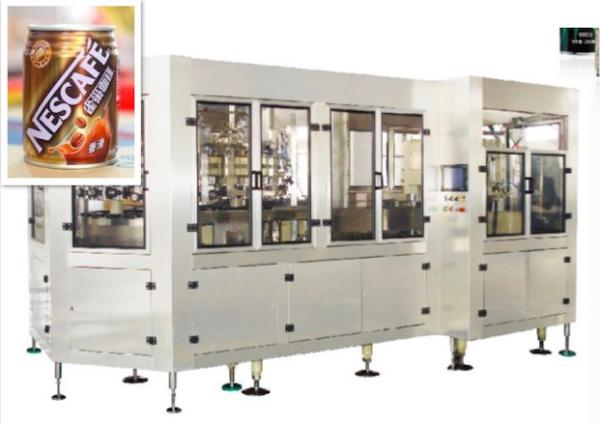

Normal Pressure CAN Filling Sealing 2-in-1 Machine

It is designed and manufactured by our company to fill mineral water, juice and dairy drinks in Aluminum CAN, Tin Can, PET CAN with features of stable performance, advanced technology, beautiful appearance and multiple functions.

1. Features

Filling Part:

1) It is designed and manufactured by our company to use atmospheric filling theory to fill material into clean CANs;

2) It adopts gravity filling theory to fill byhigh precise mechanical valve. The speed of filling is fast and filling level is precise;

3. It has completely CIP cleaning function;

4. It adopts filling valve with guiding device to protect CAN. It guarantees the precision sealing of cover and filling valve. It avoids leaking of material from cover;

5. It meets the requirements of filling different height of CANs by up and down lifting and descending;

6. It adopts gear transmission with features of high efficiency, low noise, long service life, convenient maintenance and fully lubrication. It adopts frequency convertor to control the rotating speed of main motor. It adopts stepless frequency convertor;

7. The bottle guiding system is simple in structure. Changeover can be done quickly and conveniently according to different shapes of CANs. It adopts CAN base supporting structure to transfer;

8. It adopts PLC auto control in the whole machine, trouble-shooting will display on-line such as CANs blockage and covers missing and etc.;

9. If no CANs loading, the filling valve won’t work. If emergency breakdowns, it has safety protection function;

10) The material in filling tank is controlled automatically. It adopts level sensor to inspect filling level. It guarantees the stability of level and reability of filling;

11. It adopts imported brand in crucial parts and electric apparatus.

​ Sealing Part:

1) It will seal covers on the filled CANs and then transfer to next packaging process;

2) The high hardness alloy steel in sealing roller will be quenched with HRC＞62. The sealing curve line will be processed precisely by projection grinder. It will guarantee the quality of sealing and normal running of machine;

3. It has auto control system to accomplish working with covers, won’t work without covers. It guarantees the normal running of machine and lower than the rate of damaged covers;

4) Aluminum covers will be put in the sliding channel manually. It will go into machine by gravity and pusher. The inspection switch in sliding channel will guarantee the machine halt when no covers;

5. Sealer can be adjusted up and down to produce CANs with different heights.

Technical Parameter

Main Components
