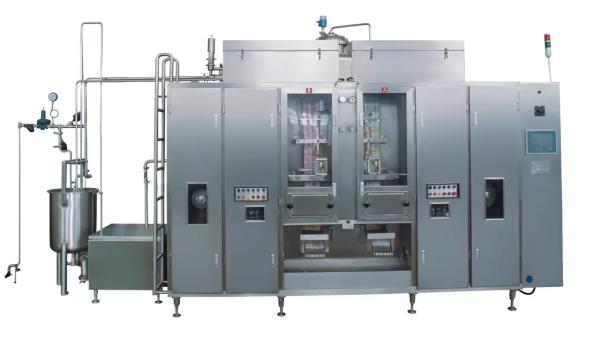

    500ml Aseptic Pouch Filling Machine for Liquid Dairy Milk Three Sides Seal

    Aseptic Pouch Filling Machine

    This PLS packaging machine has been widely applied in various fields, including liquid dairy products, plant protein beverages such as UHT milk, flavored milk, fruit juice, peanut milk, soybean milk, vinegar, water and yellow wine. It also has the extending functions like automatic cursor orientation and step-less filling speed control. It can pack 2 different volumes at same time (eg, 200ml * 500ml simultaneously).

    Control panel of the aseptic pouch filling machine
    SUS 304 All internation electrical brand, such as ABB, Simens, Schneider etc.

    1. Specification
    TypeWB64B—9000
    Produce capacity

    100ml ----- 9000 bags/h

    500ml ----- 4500 bags/h

    Filling adjust wayNon-step
    Filling heads2 (separate filling volume control)
    Packing typeThree sides seal
    Filling temperature20~25℃
    Film wastage/seal integrity

    <3‰

    (Count from actual production, except warm-up ones)

    Motor power (KW)30
    Electricity3+N+E 380/220V 50Hz
    Voltage tolerance≦±5%, use regulator if necessary
    Dimension (mm)4600*1500*3600
    Installation dimension (mm)7000*6000*4900
    Film width (mm)320 ± 1 or 260 ± 1
    Max. film weight20kg
    Compressed air≥0.6Mpa, 3m3/h
    Steam>4bars, 5kg/h
    H2O2 standard35% food grade
    H2O2 consumption

    1L each time for filing chamber sterilization;

    1L/4H for production

    Water consumption500L/each CIP process

    1. Main Components:
    No.NameImportedCountry
    1Main Control SystemB&R PCCAustria
    2Materiel & CIP ValveAPVU.K.
    3Level Control ValveGEMUGermany
    4Level SensorE+HGermany
    5CylinderFESTOGermany
    6Angle Seat ValveGEMUGermany
    7High-Speed Electromagnetism ValveMACU.S.
    8Steam Reducing Valve

    PICUT

    (Watson McDaniel)

    U.S.
    9MotorABBSweden
    10H2O2 PumpNikuniJapan
    11Step DriverSHAPHONU.S.
    12Spraying systemsSpraying SystemsU.S.
    13Human interfaceHitachiTaiwan
    14Electric SwitchSchneiderFrance
    15SwitchTURCKGermany
    16Laser SensorBANNERU.S.
